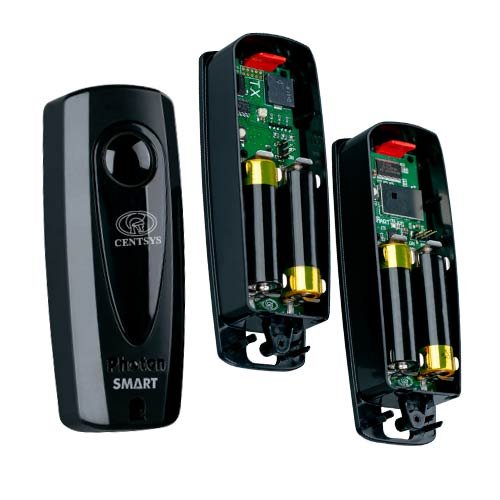

Photon SMART fully wireless PE safety beams
$1.00
Get peace of mind in no time thanks to our award-winning SMART technology. Connecting wirelessly to your CENTSYS SMART solution, Photon SMART wireless PE safety beams give you an automated gate motor system that isn’t just safe, it’s intelligently safe.
Main features:
- Connects wirelessly to your SMART solution – saves time and money
- Pair and align in seconds
- Beautifully styled – adds an air of sophistication to your swing or sliding gate
- Outstanding reliability offering up to 2 years of battery life
- Long range – brings safety to even the widest entrance gates
- Fully sealed unit – prevents insect ingress
- Can be easily added to sites with existing hard-wired beam sets
Description
| Technical Specifications: | ||
|---|---|---|
| Power supply | 2 x AA Alkaline Batteries1 (supplied for each transmitter and receiver) | |
| Battery life | >2 years | |
| Battery-low indication | Notified via MyCentsys Pro Mobile Application | |
| Maximum operating distance | 30m | |
| Alignment between beams2 | Automatic – 1m circle @ 10m | |
| Maximum Operating Distance Photon SMΔRT Receiver to SMΔRT Controller | 10m | |
| Operating temperature | -15°C to +65°C | |
| Operating humidity | 0 – 90° (non-condensing) | |
| Housing material | ABS | |
| Lens material | PC | |
| Degree of Protection | IP54 | |
| Packaging weight | 200g | |
| Packaging dimensions | Length: 137mm Width: 72mm Height: 58mm |
- Only replace with AA Alkaline batteries; do not use rechargeable batteries with this product
- Circular area – assuming parallel surfaces
