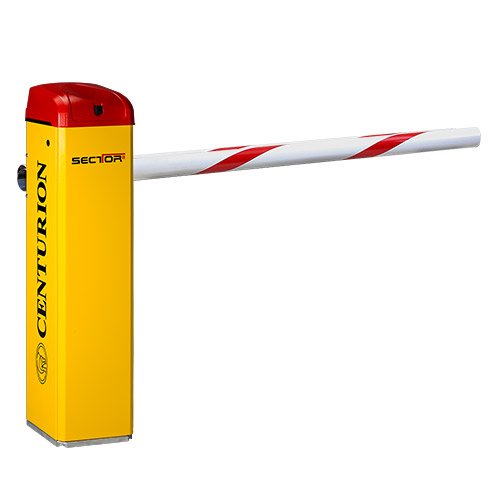

SECTOR II – HIGH-VOLUME INDUSTRIAL TRAFFIC BARRIERS
$1.00
Introducing the heir to the throne of high-volume vehicular access control. With an updated look that perfectly matches its superior performance, an optimised design for the ultimate in ease of installation and boasting the awe-inspiring speed that made its predecessor king of the access control jungle, the SECTOR II is the embodiment of automation evolution.
* NEW *
Our redesign of the boom pole to a rectangular profile not only enhances the visual appeal of the barrier, but also improves its strength and durability. The easy-to-attach LED strip is seamlessly integrated with the barrier’s logic, providing a clear indication for drivers when it is safe to proceed. The updated pole adds to the long-term performance of the barrier and makes the operator smart-looking and eye-catching, while the LED strip provides much safer traffic management and greater peace of mind not only for the installer, but for everyone using and managing the premises.
A hard-driving, high-powered gearbox and tough-as-nails enclosure deliver the ultimate in long-term performance, placing the SECTOR II high-volume traffic barrier in a class by itself.
Description
MAIN FEATURES:
- High-volume capability.
- Battery backup.
- Rapid boom pole raising (3 metre version < 1.2 seconds).
- Smooth, intelligent speed control.
- High-torque boom pole operation.
- Robust, durable and slimline operator casing.
- LCD user interface for simple setup.
- Onboard CENTSYS code-hopping multichannel receiver with selective add and delete.
- Integrated ChronoGuard timer functionality.
- Pre-galvanised enclosure improves corrosion resistance (of mild steel variant).
- Electronics reside at the top of the enclosure for easy access.
- Powder-coated aluminium – with condensation shield – lid gives the unit an updated appearance and protects electronics from moisture damage.
- Improved cable routing and securing make for a neat and tidy installation.
- Easy to achieve AC and DC isolation.
- Available in three stunningly beautiful colours, all sporting the striking crimson crown. Please note that a price premium applies for the gun metal grey variant.
MODELS:
- SECTOR 3 – Rapid speed high-volume barrier, 3m boom pole.
- SECTOR 4.5 – Standard speed high-volume barrier, 4.5m boom pole.
- SECTOR 6 – Standard speed high-volume barrier, 6m boom pole.
SECTOR II TECHNICAL DATA:
| DESCRIPTION | SECTOR 3 | SECTOR 4 | SECTOR 6 | |
|---|---|---|---|---|
| Input Voltage | 220 – 240V AC +\- 10% @ 50Hz | 220 – 240V AC +\- 10% @ 50Hz | 220 – 240V AC +\- 10% @ 50Hz | |
| Motor Voltage | 12V DC | 12V DC | 12V DC | |
| Motor Power Supply | Battery-driven 1 – 2A Charger | Battery-driven 1 – 2A Charger | Battery-driven 1 – 2A Charger | |
| Boom Pole Length | 3.0m | 4.5m | 6.0m | |
| Boom Pole Raise Time | 1.2 sec | 3 sec | 3 sec | |
| Daily Operations – Max | 3000 | 3000 | 3000 | |
| Duty Cycle – Mains Present | 100% 2 | 100% 2 | 100% 2 | |
| Housing Specification 3 | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel | |
| Barrier Pole Specification | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape | |
| Onboard Receiver Specification | CENTSYS code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity | CENTSYS code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity | CENTSYS code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity |
[*] – Can operate off a solar supply, consult CENTSYS for assistance. [*] – 7Ah battery (can be upgraded for longer power failure autonomy). [**] – Based on 25°c ambient temperature and unit not in direct sunlight. [***] – Housing available in a Grade 430 stainless steel for coastal areas with no airborne salt and Grade 316 for extreme corrosion environments.
